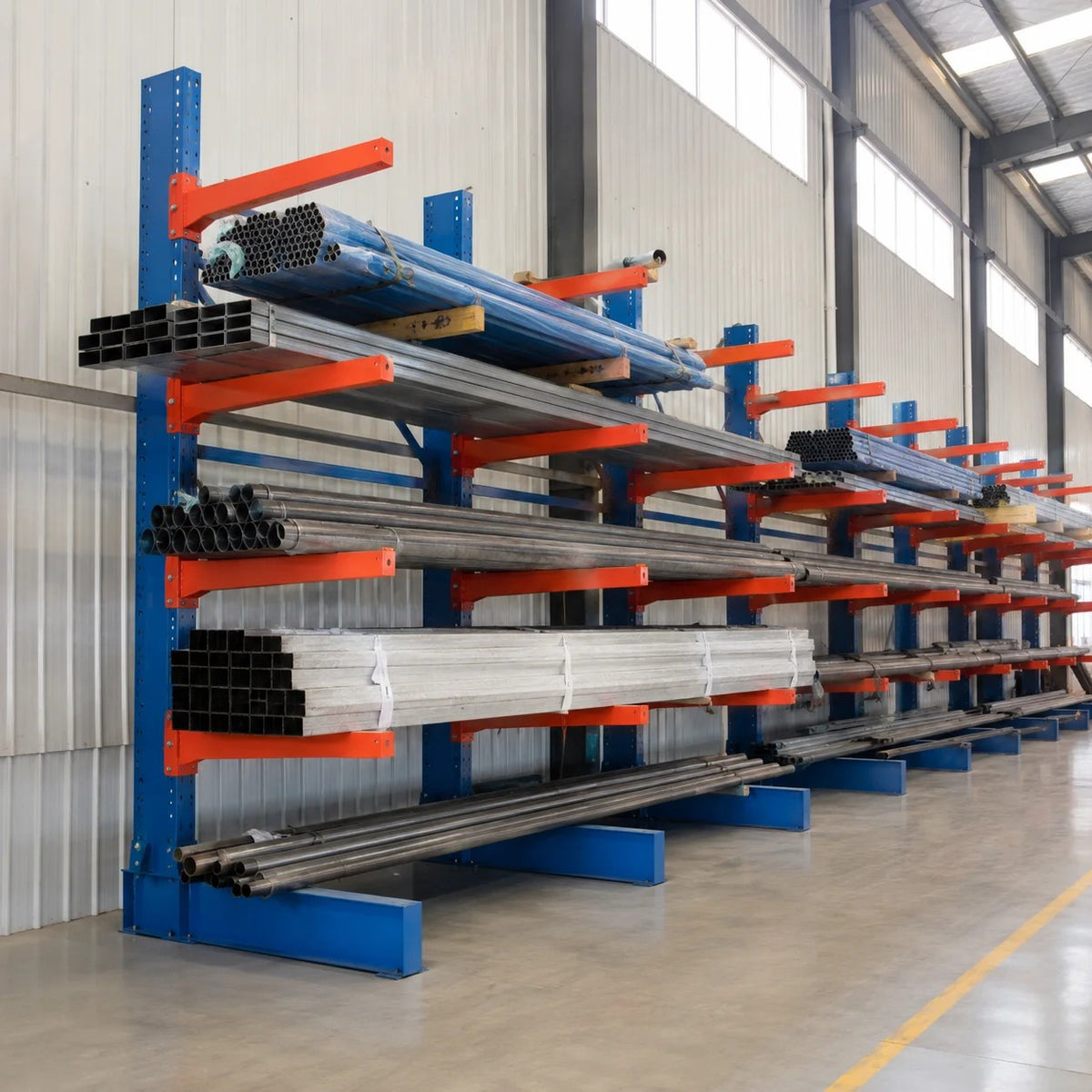

Adjustable Cantilever Racking System Rigid Frame for Industrial Timber and Aluminum Warehouse Storage Plan

Brand NameYone
Model NumberCantilever Rack
MaterialQ235B Steel
Surface TreatmentElectrostatic Powder Coating
Size2000mm, 3000mm
MOQ1
Delivery Time7-14 Work Day
ApplicationStorage System

Request a Project Quote

Tell us about your project and the product you need.

Overview

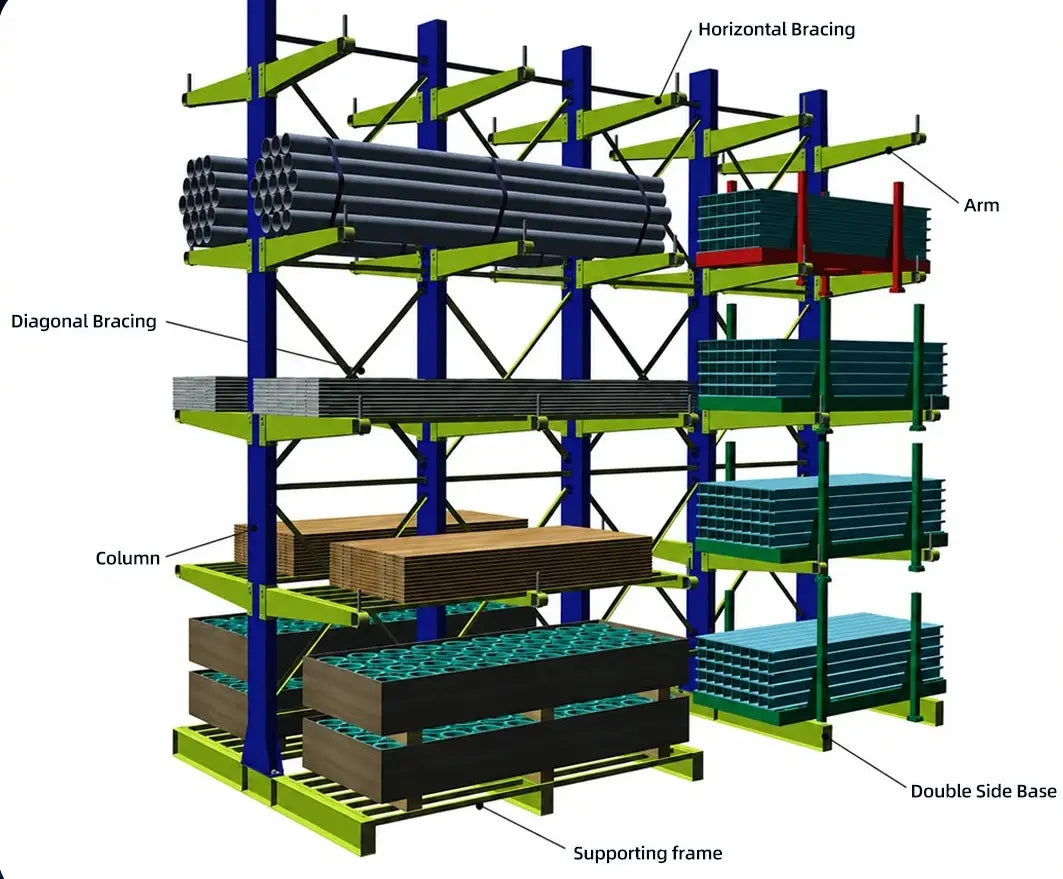

Optimized Layout Modeling: Our 24h CAD service delivers high-capacity designs for long-material storage. Q235B steel arms support up, utilizing professional 3D planning to maximize warehouse efficiency for pipes.Structural Integrity Specs: Columns are manufactured from twin C-section Q235B steel profiles for maximum rigidity. The H-beam base ensures absolute stability under heavy loads in industrial timber and profile storage hubs.Load Compensation Design: Each arm features a precision 10-degree upward tilt to compensate for deflection. This ensures the cargo remains perfectly horizontal after loading, providing safety for long metal or PVC pipes.Industrial Safety Guarding: Features high-strength wedge-lock connectors and heavy-duty base plates to prevent failure. Static powder coating provides excellent corrosion resistance for outdoor or high-humidity warehouse zones.Operational ROI Efficiency: Eliminate restrictive vertical uprights to speed up forklift accessibility. High-strength Q235B steel construction doubles storage density for long goods, providing a high industrial ROI for owners.

Detail Information

Detail Information
ParameterValueNotes
Rack ConfigurationSingle-Sided or Double-SidedFlexible placement along walls or in open warehouse areas.
Arm LengthCustomized to Material DimensionsSupports long or bulky materials of different sizes.
InstallationPlug-InEasy to assemble, with adjustable arm positions to suit different storage requirements
FeatureCorrosion-Resistant, Anti-Rust, Double-Sided, Single Sided, Durable, Heavy Duty

Feature

Key Features

  • Hot-dip galvanized or powder-coated surfaces for anti-corrosion.
  • Reinforced bases designed for outdoor ground conditions.
  • Arm lips and locking pins prevent items from sliding.
  • Optional canopy or roof system for extra protection.
  • Stable design suitable for both temporary and permanent use.

Application

FAQ

Can this product be customized?

Share your required dimensions, loading needs and warehouse layout so the available configuration can be reviewed.

What information should I include in an inquiry?

Include your warehouse dimensions, pallet or goods sizes, load per level, storage height and estimated quantity.

How can I confirm the load capacity?

The capacity depends on the selected configuration. Request the specifications for your proposed layout before ordering.

Can I request a layout proposal?

Send your warehouse drawing, aisle requirements and handling equipment details with your inquiry.

Where can I find delivery information?

Ask for the delivery schedule in your quotation. Timing depends on the product configuration, quantity and destination.

How do I request a quotation?

Click Get a Quote and complete the inquiry form. The product name and link will be included automatically.

COMPATIBLE PRODUCTS

Complete Your Racking System

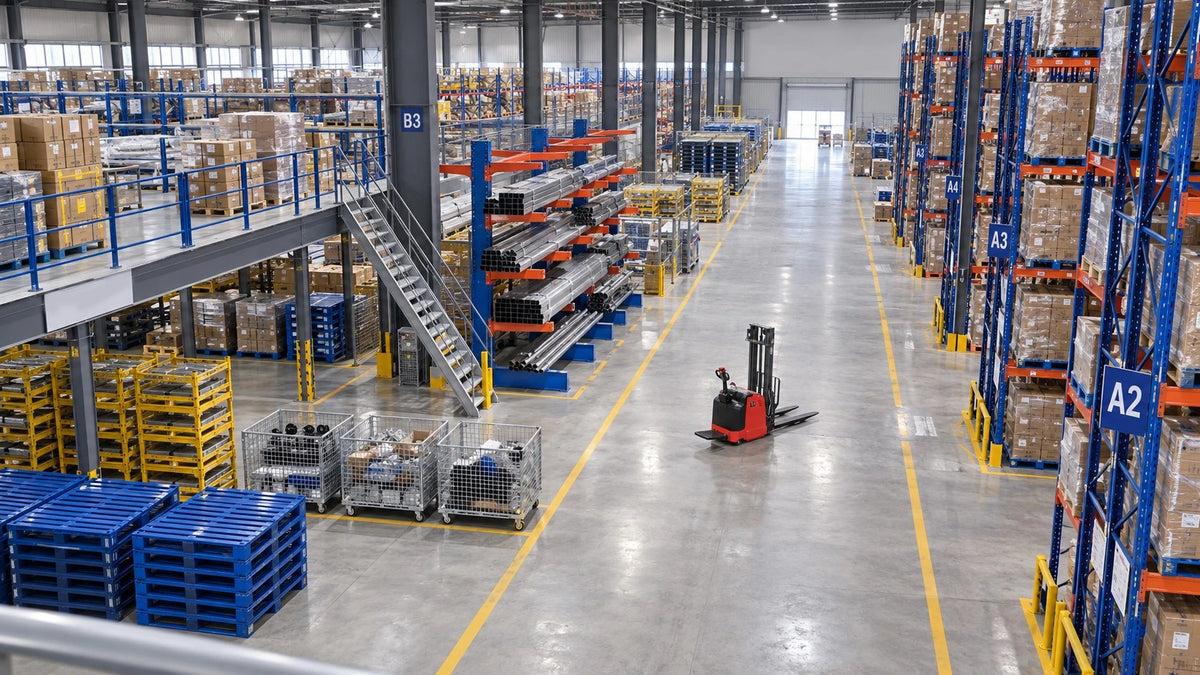

Explore compatible components and accessories. Click the numbered points to view the corresponding product.

01 Heavy Duty Narrow Stacker 0.8t/1.2t/1.6t VNA Stand-on 3 Way Electric Pallet Stacker Forklift for Warehouse Handling Forklift View product → 02 Customized Durable Steel Pallet Storage for Warehouse Storage System Heavy Duty Stackable Metal Pallet for Industrial Use Steel Pallet View product → 03 Rugged 1000kg Cage Storage Collapsible Static Coating for Technical Logistics Hub Warehouse Management Storage Cage View product → 04 Industrial Mezzanine Rack Heavy Duty Multi-level Warehouse Storage Platform System Q235B Steel Boltless Assembly Mezzanine Racking View product → 05 Custom Cantilever Racking System Single-Sided Heavy Duty for Long Pipe Storage and Timber Distribution Cantilever Racking View product →
01 Forklift 02 Steel Pallet 03 Storage Cage 04 Mezzanine Racking 05 Cantilever Racking

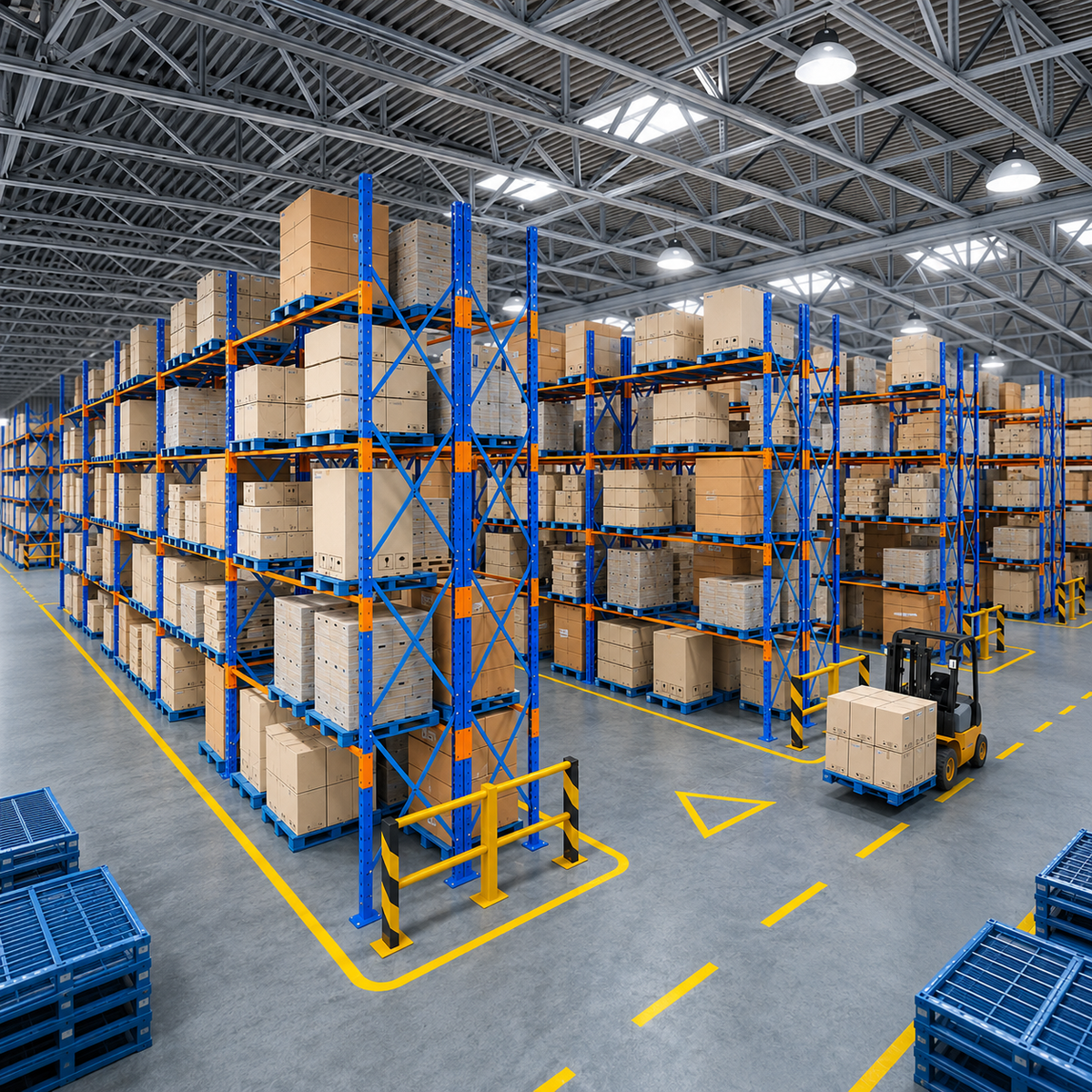

Your Trusted Racking Manufacturer

ABOUT YONE

Your Trusted Racking Manufacturer

YONE is a professional warehouse racking manufacturer and supplier, providing heavy-duty storage systems for warehouses, distribution centers and manufacturing facilities. From customized rack design through quality production and project support, we help businesses build practical storage solutions.

Learn More

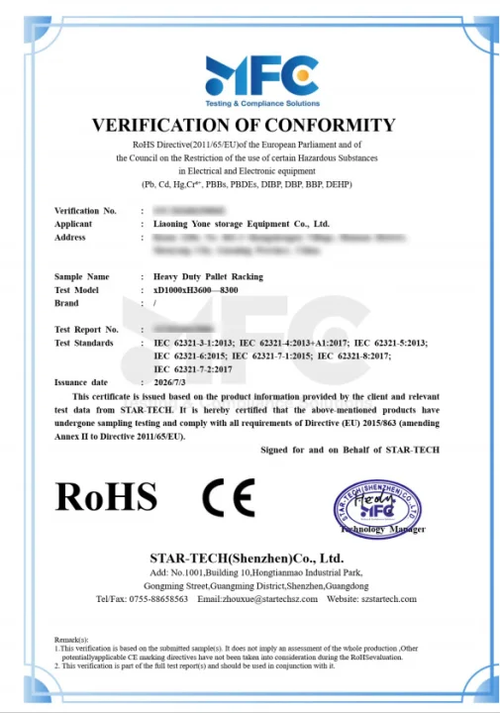

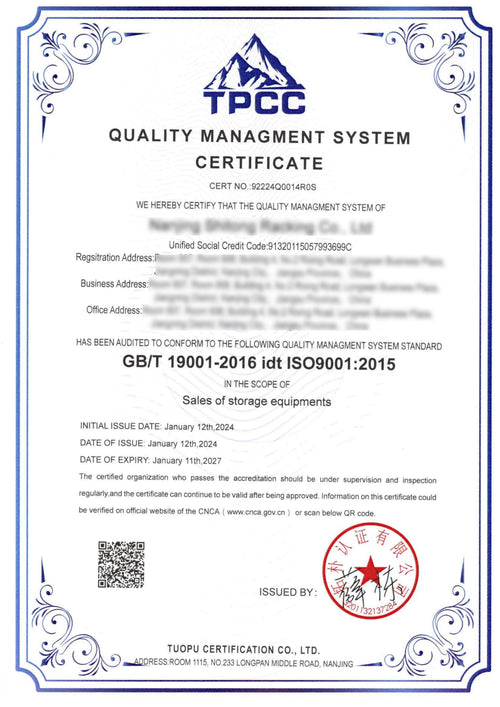

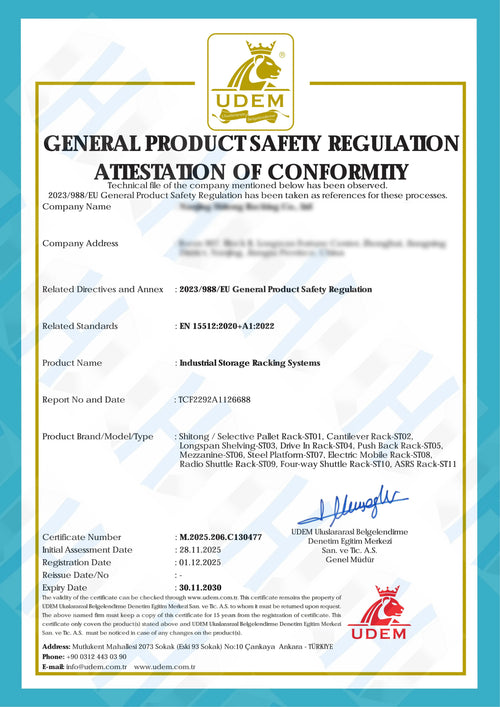

CERTIFICATIONS & QUALITY

Our Certifications

Our products are manufactured under strict quality control and meet international standards.

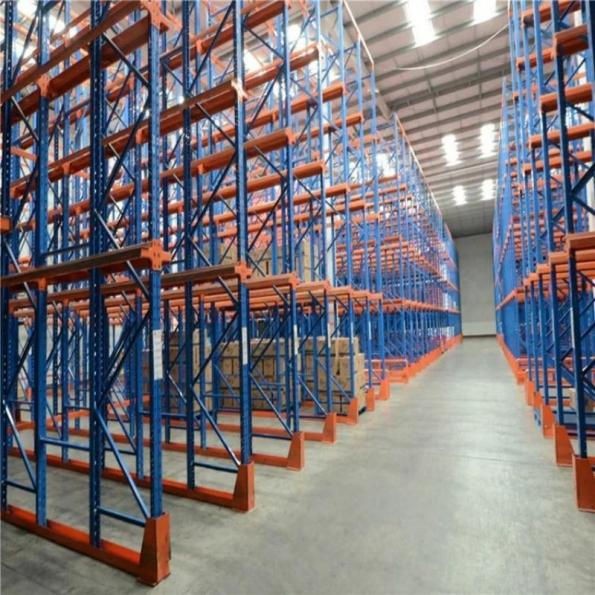

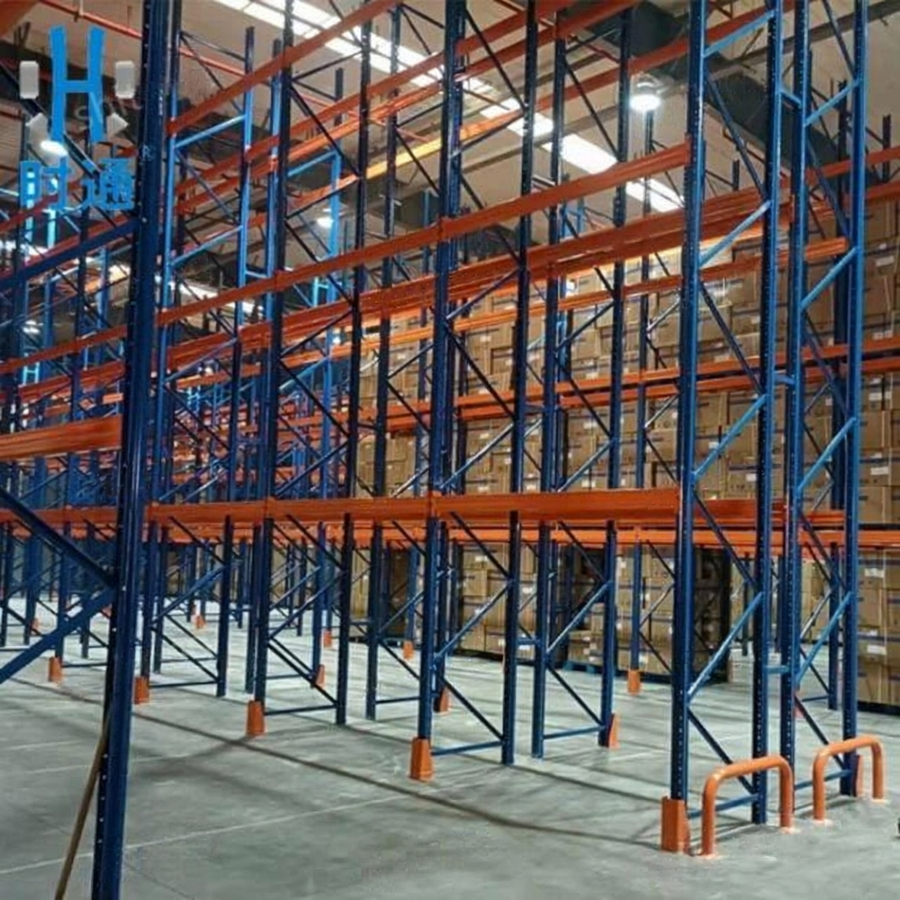

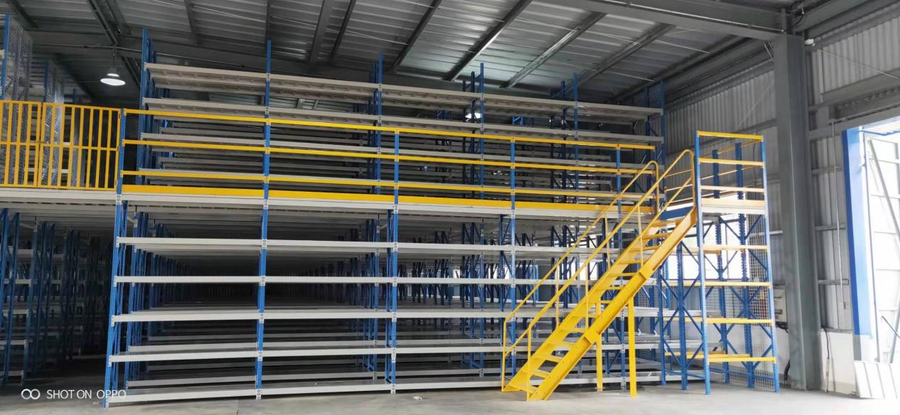

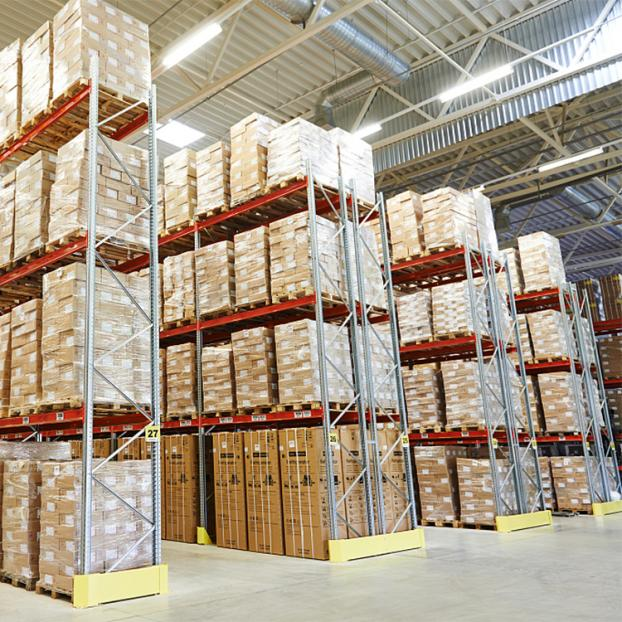

YONE warehouse project
