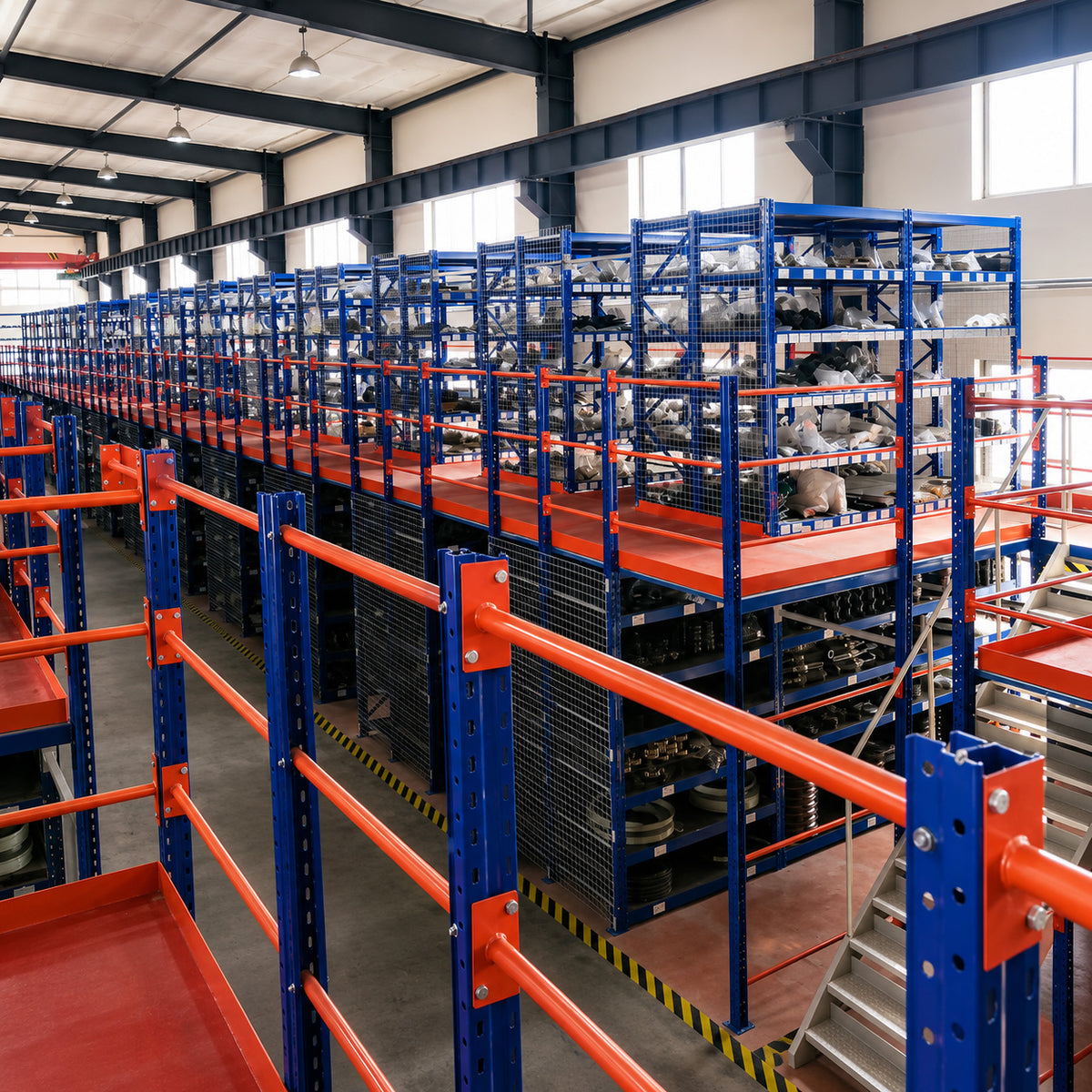

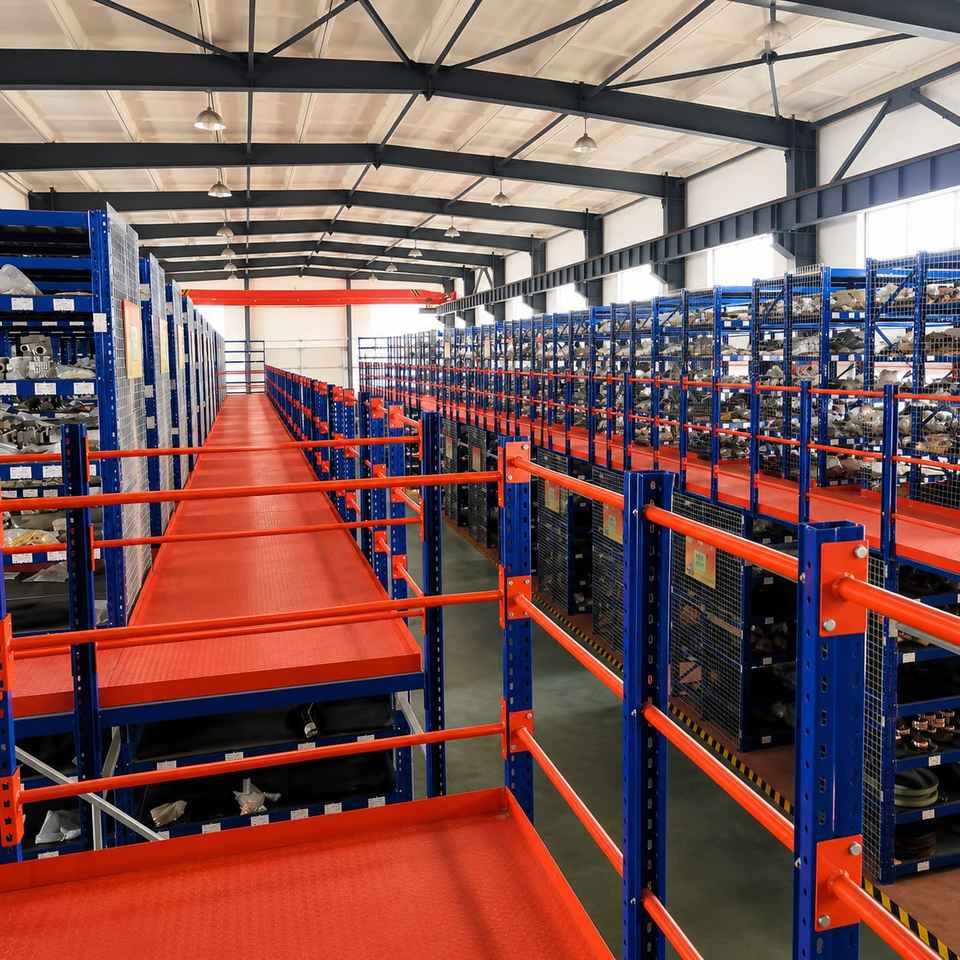

Kundenspezifisches Zwischengeschoss-Regal Mehrstöckiges industrielles Lagerplattformsystem aus Q235B-Stahl in schraubenloser Modulbauweise

Brand NameYone
Model NumberIndustrial Steel Platform
MaterialHigh Grade Q235B Steel
Surface TreatmentEpoxy Electrostatic Powder Coating
Load Capacity1000kg
Size2 Layer,3 Layer
MOQ1
Delivery Time7-14 Work Day
Warranty1 Year

Request a Project Quote

Tell us about your project and the product you need.

Product Summary

Warehouse facilities frequently face space constraints when inventory demands increase. Constructing an elevated, structural steel level allows operations to double their usable floor space without undergoing expensive building construction. Our heavy-duty Steel Mezzanine Platform is designed to address these vertical space challenges.

Manufactured from certified Q235B structural steel, this modular system offers high load stability and structural durability for daily commercial use. It creates an independent, intermediate level that functions as an elevated warehouse floor, allowing businesses to optimize their vertical clearance. This configuration provides a cost-effective method to separate storage, assembly, or office zones within a single facility.

Quality Control
We manufacture all structural elements with certified Q235B structural steel sourced directly from premier domestic mills.
*Engineering Verification: Before production, our engineers conduct 3D structural modeling and finite element analysis to simulate load deflection and safety factors.
*Automated Fabrication: Automated CNC plasma cutting and robotic CO2 welding lines maintain a strict structural tolerance of ±1mm across all steel profiles.
*Surface Treatment: All components go through a multi-stage chemical wash and shot-blasting process to remove rust and mill scale.
*Custom Coatings: We apply an industrial-grade electrostatic powder coating in customizable RAL colors (including blue, orange, grey, and yellow) to prevent oxidation and scratching in high-traffic workspaces.

Detail Information

Detail Information
ParameterSpecification & RemarkFeatures
FeatureFull-Floor Steel Platform, Heavy-Duty, Forklift CompatibleCreates a complete elevated floor area; supports forklift operations on the upper level; ideal for maximizing vertical space in warehouses with high ceilings.
InstallationH-Beam / I-Beam Main Structure, Bolted or Welded ConnectionModular steel frame with checkered steel plate or grating floor panels; can be designed as 2-3 levels; requires professional structural engineering and foundation assessment.
Load Capacity00-1000 kg/㎡ (Standard), up to 2000 kg/㎡ (Heavy-Duty)Floor load capacity varies by design; heavy-duty versions support forklift traffic on upper levels; main beams typically use H-beam steel (e.g., 200×100mm or larger).
ApplicationManufacturing, Third-Party Logistics (3PL), Cold Storage, Large-Scale WarehousingBest for warehouses needing to double or triple usable floor area without expanding the building footprint; suitable for storing palletized goods, machinery, or as a production floor.

Feature

Fully Customizable & Scalable DesignUnlike fixed concrete structures, our steel mezzanine systems offer unmatched flexibility for evolving business needs. The modular bolted connection design allows for easy disassembly, relocation, or reconfiguration if your warehouse layout changes. We can seamlessly integrate staircases, safety gates, and lift access points to optimize your workflow efficiency. Furthermore, the system is designed for future expansion, allowing you to easily extend the platform area or add additional levels as your inventory grows.
Versatile Flooring OptionsTo suit different operational requirements, we offer a variety of flooring solutions. For heavy-duty applications involving forklift traffic, we recommend reinforced checkered steel plates or concrete-filled steel decking. For lighter storage or office use, cost-effective wooden panels or steel grating (which allows light and air circulation) are ideal choices. This versatility ensures the platform perfectly matches your specific load and environmental needs.
Safety & Compliance StandardsSafety is our top priority. All platforms are engineered with integrated guardrails, kick plates, and secure access ladders to prevent falls. Our structural designs strictly adhere to international loading codes and safety factors. Whether for personnel access or heavy machinery operation, our systems provide a secure working environment that meets rigorous industrial safety standards.
End-to-End Service SupportWe provide more than just steel structures; we deliver a complete solution. From the initial site measurement and 3D structural design to professional installation guidance and after-sales maintenance, our team supports you at every step. We also supply all necessary installation tools and detailed manuals to ensure a smooth setup process, minimizing downtime for your business.

Application

FAQ

Can this product be customized?

Share your required dimensions, loading needs and warehouse layout so the available configuration can be reviewed.

What information should I include in an inquiry?

Include your warehouse dimensions, pallet or goods sizes, load per level, storage height and estimated quantity.

How can I confirm the load capacity?

The capacity depends on the selected configuration. Request the specifications for your proposed layout before ordering.

Can I request a layout proposal?

Send your warehouse drawing, aisle requirements and handling equipment details with your inquiry.

Where can I find delivery information?

Ask for the delivery schedule in your quotation. Timing depends on the product configuration, quantity and destination.

How do I request a quotation?

Click Get a Quote and complete the inquiry form. The product name and link will be included automatically.
